# Precision Power in MRI: The Role of Power Operational Amplifiers
Published by [Apex Microtechnology](https://blog.apexanalog.com/author/apex-microtechnology) on Jul 28, 2025 3:26:38 PM
Learn the role of power op-amps within MRI imaging technology. From driving shim coils to controlling PIN diodes, they deliver the precision and performance essential for high-quality imaging.

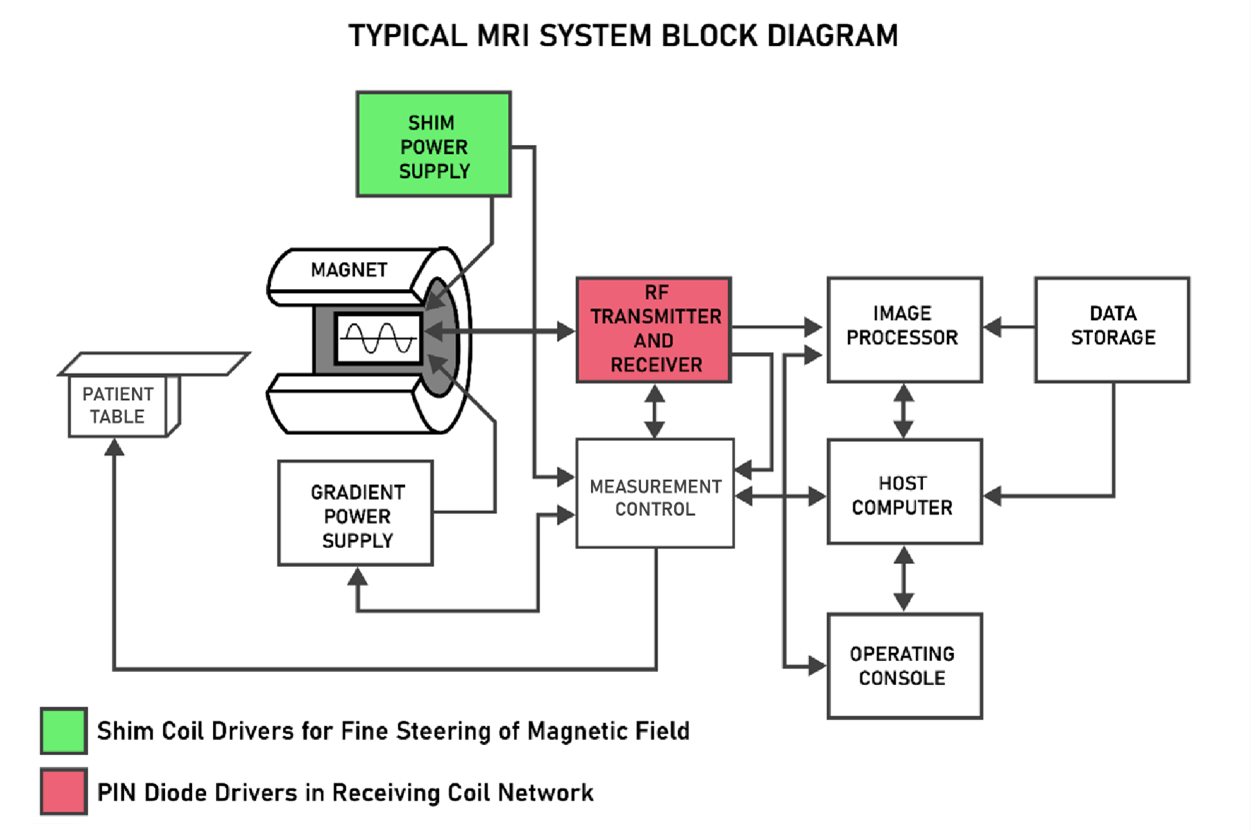

Magnetic Resonance Imaging (MRI) systems are among the most complex and precise medical imaging technologies in use today. At the heart of their functionality is a coordinated orchestration of radio frequency (RF) pulses, magnetic gradients, and static magnetic fields—each requiring precise control to produce high-resolution images. One integral element that enables this control is the power operational amplifier (power op-amp). The power op-amp is a requisite component which provides the voltage or current necessary in circuits that drive shim coils and PIN diodes.
**Driving Shim Coils for Field Homogeneity**
During MRI collection, uniformity of the main magnetic field is essential for clear and consistent imaging. However, natural imperfections in the magnetic field—arising from both the magnet itself and the subject being imaged—can degrade image quality. Shim coils are used to correct these spatial irregularities by generating small, localized magnetic fields that “shim” or refine the main field to achieve the required homogeneity.
Driving these shim coils requires a high level of current, speed and stability. Power op-amps are well-suited for this task, as they can deliver the necessary output current while maintaining low noise and high linearity. These characteristics are essential because any instability or distortion in the shim current can translate directly into spatial distortion in the resulting image.
Additionally, the dynamic response of the power op-amp becomes crucial during active shimming, where the system adjusts the magnetic field in real time to compensate for patient movement or changing scan parameters. Fast slew rates and wide bandwidth allow the amplifier to respond to control signals quickly and without introducing distortion artifacts.
Controlling PIN diodes in RF Circuit Switching
In addition to maintaining magnetic field uniformity, MRI systems rely on high-speed RF switching to control transmit and receive functions. PIN diodes are commonly employed as RF switches due to their fast-switching times and high isolation. These diodes must be driven with bias currents that can switch rapidly between conduction and isolation states without introducing noise or delays into the signal path.
Power op-amps are ideal for driving PIN diodes because they can source or sink the required bias currents while maintaining tight control over voltage and current levels. This precision is especially important when the PIN diode circuits operate at high RF frequencies, where even minor variations can impact system performance and signal integrity.
Furthermore, the compact integration of control electronics and power stages within a power op amp simplifies the design of these driver circuits. Designers can achieve high-speed switching and precise current control in a smaller footprint, which is beneficial for the space-constrained environments typical of medical imaging hardware.
Analog Precision that Powers Medial Innovation
As MRI technology continues to evolve, so does the demand for components that can meet the challenging system requirements. At Apex Microtechnology, we specialize in high-current, high-speed, power operational amplifiers engineered for the demanding requirements of medical applications. Our solutions have been used in MRI systems around the world, where their reliability, accuracy, and efficiency help advance imaging capabilities and support better patient outcomes.
Backed by in-house application engineering support and decades of expertise in analog power design, Apex continues to partner with engineers and system designers to push the boundaries of what precision analog can achieve in healthcare innovation.
The Apex Microtechnology product family of high-voltage and high-current analog devices are a leading choice across the medical OEM for driving the high voltage circuits typically found in analysis, surgical, imaging and cleaning equipment. These products include high-voltage linear and high-voltage PWM amplifiers available in commercial, industrial, and high-reliability grades to deliver maximum performance in cost-effective, off-the-shelf, single package designs.
-Apex Microtechnology
Tags: [Medical](https://blog.apexanalog.com/tag/medical)
[Back to Blog](https://blog.apexanalog.com)
- [Tweet](https://twitter.com/share)
## Related Articles
## [Apex Releases new 2000V/µs, 450V Power Amplifier in PowerSIP](https://blog.apexanalog.com/pa198)
Apex Microtechnology releases latest power operational amplifier, delivering high power with...
[Read More](https://blog.apexanalog.com/pa198)
## [Driving Motion: High-Power Analog Amplifiers in Robotic Applications](https://blog.apexanalog.com/high-power-analog-amplifiers-robotics)
High-power analog electronics are essential in modern robotics, supporting motor drivers, power...
[Read More](https://blog.apexanalog.com/high-power-analog-amplifiers-robotics)
## [Apex Releases New 3-Phase Silicon Carbide Integrated Power Module](https://blog.apexanalog.com/apex-msa303-release)
MSA303 delivers compact, high-efficiency motor drive performance with fully integrated gate drive...
[Read More](https://blog.apexanalog.com/apex-msa303-release)
##### Analog Tech Talk
#### Subscribe Now!
Register now to receive our monthly eNewsletter and expand your knowledge of power analog design — one topic at a time.
Apex Microtechnology (Apex) offers industry-leading power analog innovation for applications requiring high precision control of current, voltage and speed in the industrial, defense and aerospace, medical, and semiconductor capital equipment markets. The Apex product families include power operational amplifiers (linear amplifiers), PWM amplifiers (pulse width modulation, Class D amplifiers, switching amplifiers) and precision voltage references.
#### Company
- [About Apex](https://www.apexanalog.com/company/about.html)
- [Leadership](https://www.apexanalog.com/company/leadership.html)
- [Careers at Apex](https://www.apexanalog.com/company/careers.html)
- [Quality](https://www.apexanalog.com/quality/apex_certifications.html)
- [Sales and Distributors](https://www.apexanalog.com/company/apex_sales.html)
- [Suppliers](https://www.apexanalog.com/company/suppliers.html)
- [Contact](https://www.apexanalog.com/sales/contact_us.html)
- [Events](https://www.apexanalog.com/company/events.html)
- [Webmaster](https://www.apexanalog.com/company/webmaster.html)
- [SalesNet Login](https://apexanalog.sharepoint.com/sites/salesnet/SitePages/Home.aspx)
#### Literature
- [Data Book](https://cloud.3dissue.com/95932/96351/113449/Databook-Oct2015/index.html)
- [Product Selection Guide](https://www.apexanalog.com/resources/productbulletins/Product-Selection-Guide.pdf?__hstc=139971436.19e8af8d486e9d2b866a3feaa060a1e9.1639456649422.1639539452286.1639549981253.5&__hssc=139971436.1.1639549981253&__hsfp=2880844284)
- [Aerospace and Defense Solutions Guide](https://www.apexanalog.com/resources/productbulletins/Defense-and-Aerospace-Solutions-Guide.PDF?__hstc=139971436.19e8af8d486e9d2b866a3feaa060a1e9.1639456649422.1639539452286.1639549981253.5&__hssc=139971436.1.1639549981253&__hsfp=2880844284)
#### Support
- [Contact](https://www.apexanalog.com/sales/contact_us.html)
- [Application Note Library](https://www.apexanalog.com/support/app_note_library.html)
- [Technical Article Library](https://www.apexanalog.com/support/tech_article_library.html)
- [Spice Models](https://www.apexanalog.com/support/spice_models.html)
- [Lunch and Learn Technical Seminar](https://www.apexanalog.com/support/lunch_and_learn.html)
© 2026 Apex Microtechnology | [Privacy Policy](https://www.apexanalog.com/company/privacy_policy.html)
